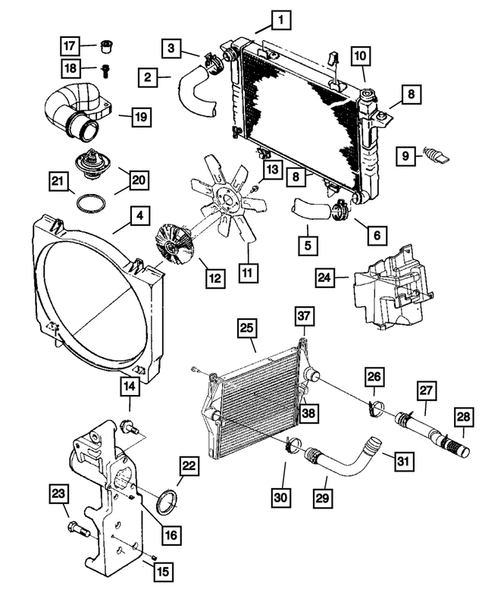

Radiator and Related Parts for 2006 Dodge Ram 3500
No.
Part # / Description / Price
Price
N/A
Hex Head Screw And Washer
Mopar
Mopar Description: M8-1.25x22.00. Fan shroud to cooling module. Also Included in Left Liner. Shroud To Engine. Fan Shroud to Radiator.
N/A
Hose Clamp Mopar
Mopar Description: Engine end. 55x15. Engine side. Service With Hose. 54x15. Outlet Hose. Radiator End. At Engine. Engine Inlet Lower.
$21.60
$21.60
N/A
Air Conditioning System Label Mopar
Mopar Description: A/c r-134a,belt routing,fan warning. With Belt Routing.
1
Clip / Spring Nut Mopar
Mopar Description: M8.0x1.25x25.37lx17.27w. Brackets To Shell. Corner Bracket To Shell & Mounting Bracket. Center Reinforcement To Shell & Bracket To Center Support. Engine Oil Cooler To Bracket. U.
$17.92
$17.92
3
Hose Clamp Mopar
Mopar Description: Water pump inlet. Water pump end. Engine end. 60x15. Engine side. Radiator Inlet Hose. Lower.
9
$34.05
13
Hex Head Screw And Washer Mopar
Mopar Description: .312-18x.75. Fan Drive attaching. M4.2x1.41x20.00. Attach Fan to Fan Assembly. Fan To Fan Drive.
14
Hex Flange Head Bolt, Bedplate To Block, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: Oil Pickup Tube. Lifting Bracket To Cylinder Head. Cylinder Block Stiffener Plate. Oil Pick Up Tube. Engine Lifting Bracket. Bedplate. M10x1.5x25. [M10x1.50x25]. M10x1.50x25.00. [M10x1.50x25]. Cylinder Block Stiffener To Cylinder Block.
16
Roll Pin Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: Water Inlet Connector to Engine. Water Inlet Connector Align.
17
Pipe Plug Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: Right Side Of Cylinder Head Behind Thermostat Housing.
$27.16
$27.16
18
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: Bracket To Cylinder Head Cover. M14x2.00x80.00. Water Outlet.
$22.79
$22.79
22
Seal, Water Outlet Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: Coolant Inlet Connection. Water Inlet Connection. O-Ring Seal Between Water Inlet and Block.
$36.70
$36.70
23
Hex Head Bolt Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE.
Description: M12x1.75x25. Upper Outlet Bolts.
25
Charge Air Cooler Package Mopar
Mopar Description: Charge Air Cooler, Screw,Instruction Sheet. Stamped 55056817AC.
26
$49.05
28
Hose Clamp Mopar
Mopar Description: Tube to hose charge air cooler. Duct To Charge Air Cooler. Hose to cac. Cac to duct. Cac end.
